Key Features:

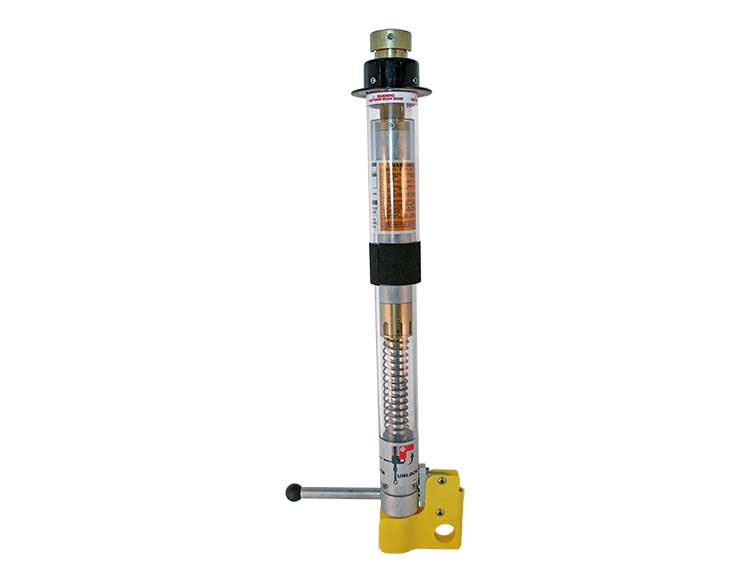

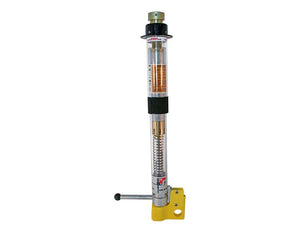

• Utility Solutions BREAK-SAFE USBS-46-2-PS load break and pick-up tool, rated 46 kV at 200 amps
• Duckbill head configuration, 2.5" body diameter
• 46.5" closed, 57.5" open; weight 9 lb 9 oz
• Accepts conductors from #6 copper up to 954 ACSR (1.1" diameter)
• Operated on an insulated fiberglass hot stick and fitted with a yellow safety lock

Benefits:

• It turns a mechanical jumper into a switch you can open and close, so load break and load pick-up happen at the tool instead of at the connection
• The 200 A continuous rating covers normal distribution loading on a 46 kV feeder
• Duckbill jaws are the head style for reaching a conductor you cannot come straight up on
• One tool spans #6 copper to 954 ACSR, so it fits both service taps and heavy backbone conductor
• The yellow safety lock and stick operation keep the lineman's hands well clear during the break

Availability: Usually Ships in 2-3 Business Days
