Key Features:

• Greenlee HVA-2000 high voltage ammeter measures 1 - 2000A on conductors rated 0 - 500kV line-to-ground
• Frequency rating of 25 - 500Hz, with 50-60Hz accuracy of 1% plus 2 counts from 1-10A, plus 3 counts from 11-100A, plus 6 counts from 101-500A and plus 8 counts from 501-2000A
• LED display with peak-hold and real-time measurement modes, and storage of the last 4 readings
• Measures 4"H x 6.6"W x 11.5"L and operates from -20 F to +140 F (-29 C to +60 C)

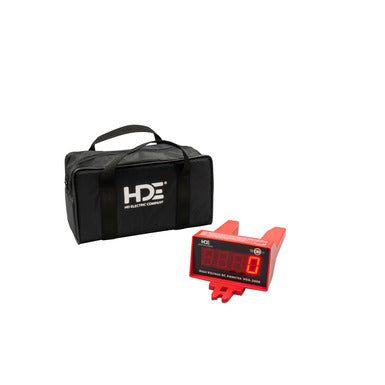

• Supplied as the HVA-2000 ammeter with a B-5 bag

Benefits:

• A 500kV line-to-ground rating lets one instrument cover distribution through transmission-class current checks
• Stored readings mean a lineman can take several measurements aloft and read them back on the ground
• Peak-hold captures a value you cannot watch while working at arm-and-stick distance from the conductor
• An LED display stays readable in direct sun where an LCD would wash out
• The wide operating temperature range keeps it usable on winter storm work and summer load checks alike

Availability: Usually Ships in 2-3 Business Days
