Key Features:

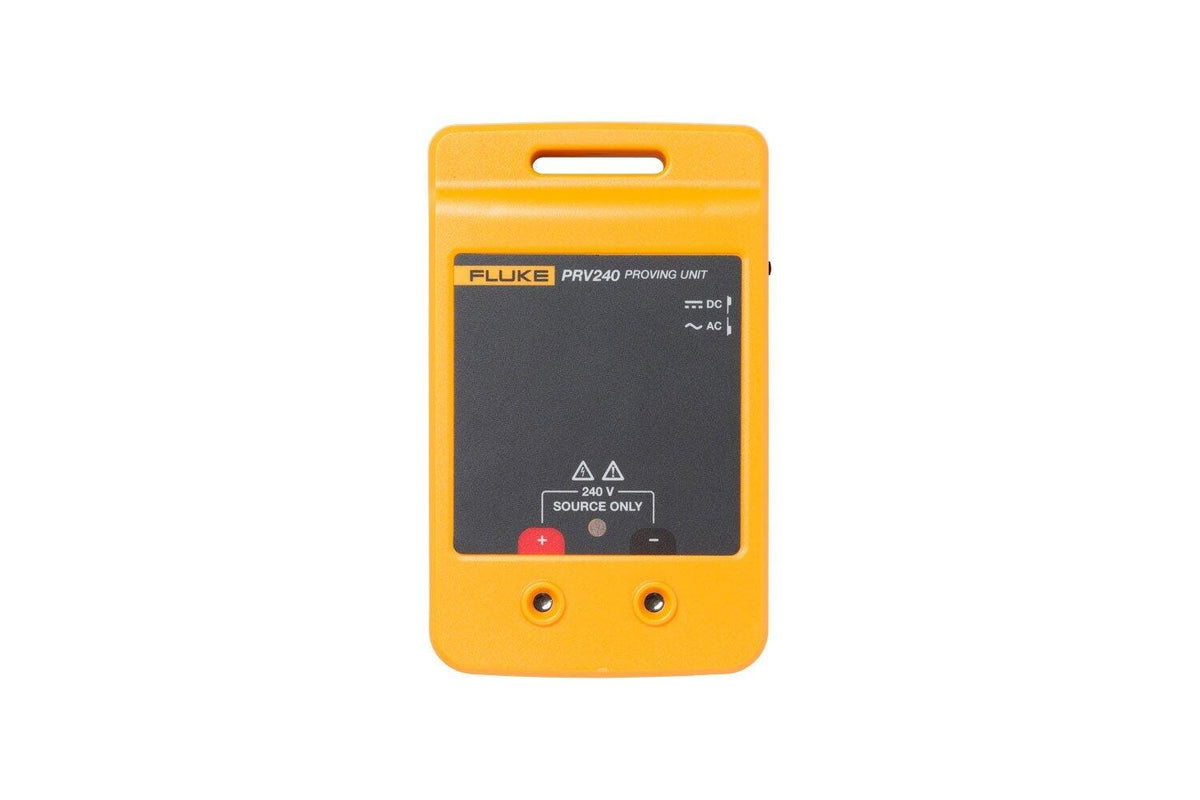

• Fluke PRV240 Proving Unit supplies 240 V ac rms or dc, plus or minus 10%, into a load greater than 1 megohm
• Also drives low impedance testers, delivering 60 V ac typical and 50 V ac rms minimum into a load above 3 kilohm
• Measures 4.6" x 2.9" x 1.1" (11.7 cm x 7.4 cm x 2.8 cm) and weighs 8 oz (0.23 kg) with batteries
• Four AA alkaline cells give 5000 five-second test cycles above 1 megohm, or a minimum of 300 tests above 3 kilohm
• Designed to IEC 61010-1 and IEC 61010-2-030, rated -10 C to +50 C, with an LED power indicator; ships with a TPAK magnetic hanging strap, four AA batteries and a quick reference guide; one-year warranty

Benefits:

• Proving a tester before and after a live-dead-live check is what makes the dead reading defensible.
• Because it drives both high and low impedance test tools, one unit covers everything in the meter bag.
• At 8 oz it fits in a pocket, so there is no reason to skip the proving step.
• 5000 test cycles on a set of AA cells means it is not a battery-hungry item on the truck.
• The magnetic hanging strap holds it on a panel so both hands stay on the meter.

Availability: Usually Ships in 2-3 Business Days
