Key Features:

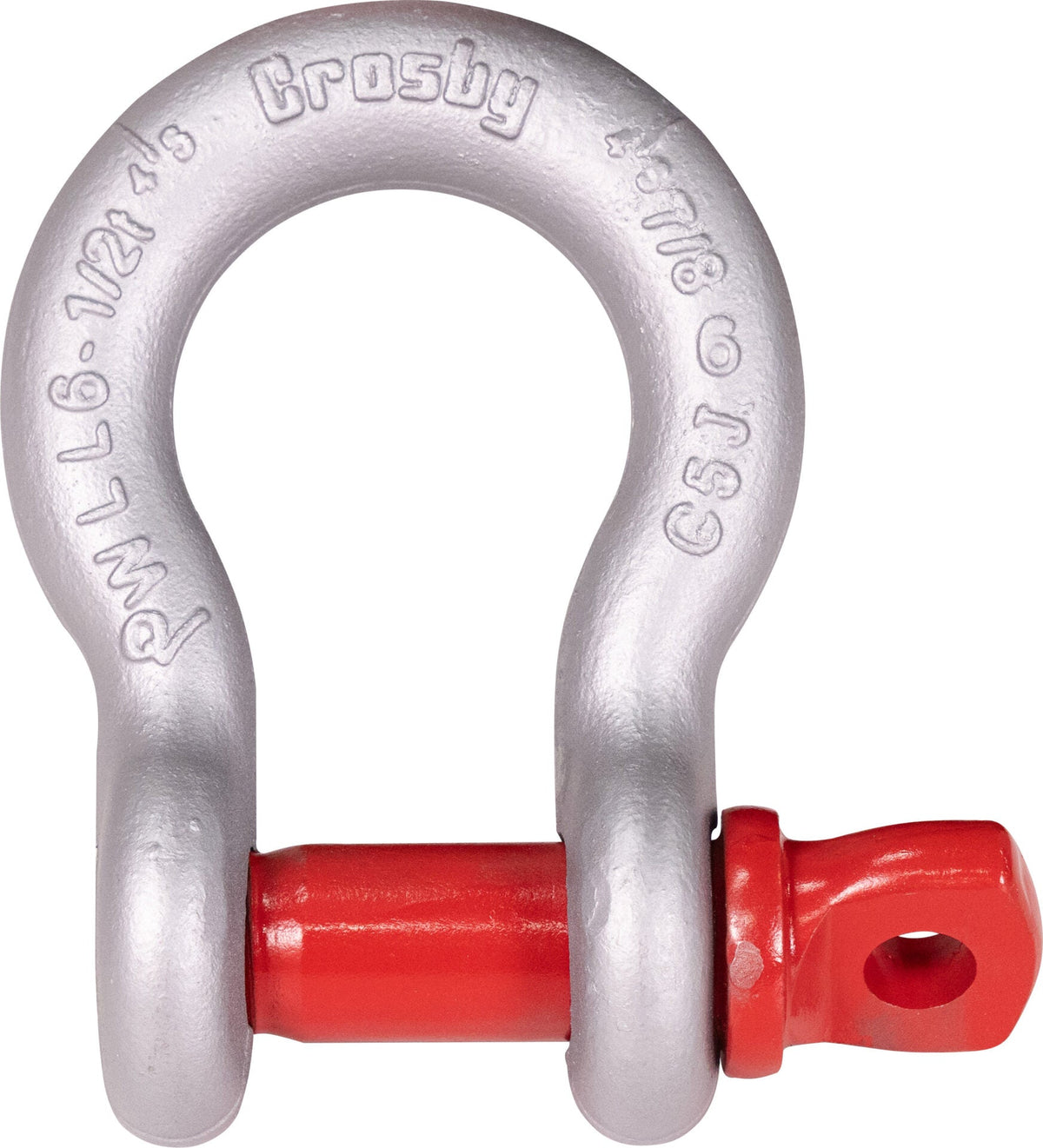

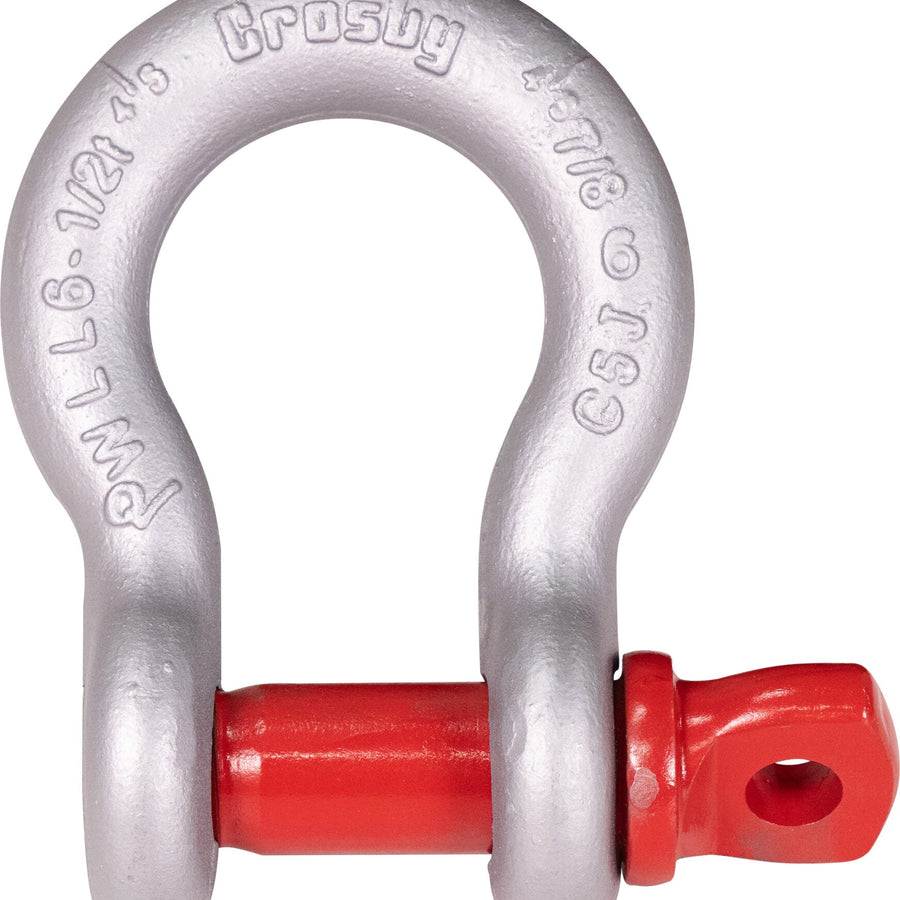

• Crosby 1018419 G-209 screw pin anchor shackle, 3/8 in nominal size with a 0.44 in screw pin
• 1 ton working load limit at a 6:1 design factor
• 1.03 in inside jaw width, 1.44 in inside length, 2.49 in overall length
• Carbon steel body with an alloy steel pin, hot-dip galvanized
• Meets US Federal Specification RR-C-271H Type IVA Grade A Class 2, ABS 2016 and ASME B30.26; approved from -40 to 400 F

Benefits:

• A 1 ton limit at 6:1 fits light rigging and tag-line work where a larger shackle is dead weight
• The screw pin makes hand connections quick when a hitch changes often
• A 1.03 in jaw takes standard light sling eyes without crowding the pin
• Galvanizing plus the -40 to 400 F range keeps it serviceable outdoors year round
• Federal, ABS and ASME B30.26 compliance is the paperwork an inspector asks for

Availability: Usually Ships in 2-3 Business Days
