Key Features:

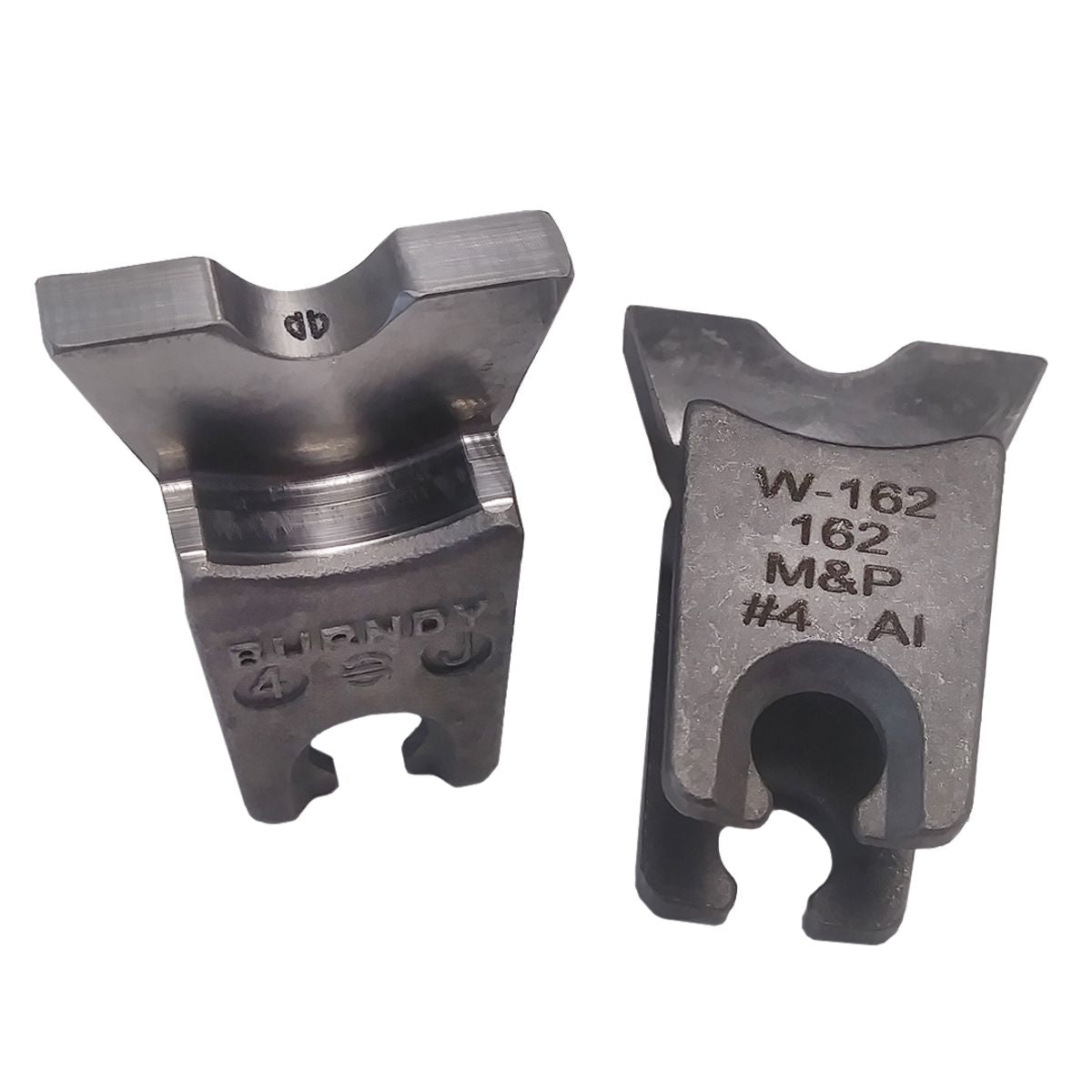

• Burndy stainless steel W die, catalog 464302 (W162), die index 162
• Rated as a 6-ton die with 6 ton crimp force capacity
• Crimps #4 AWG aluminum conductor
• Fits the MD6 and MD7 mechanical, Y500CTHS hydraulic, and PAT600 and PATMD battery actuated crimpers
• Produces a twin W-RT style circumferential crimp; weighs 0.14 lb and is supplied as the die only

Benefits:

• Stainless steel resists the corrosion that pits ordinary dies left in a damp tool case.
• Index 162 matches the index called out on the connector, so the finished crimp is verifiable at inspection.
• A circumferential crimp compresses the barrel evenly all the way around rather than on two flats.
• One die crosses mechanical, hydraulic and battery crimper families, so a shop stocks one part instead of three.
• At 0.14 lb it adds nothing to the weight of a crimper case.

Availability: Usually Ships in 2-3 Business Days
