Key Features:

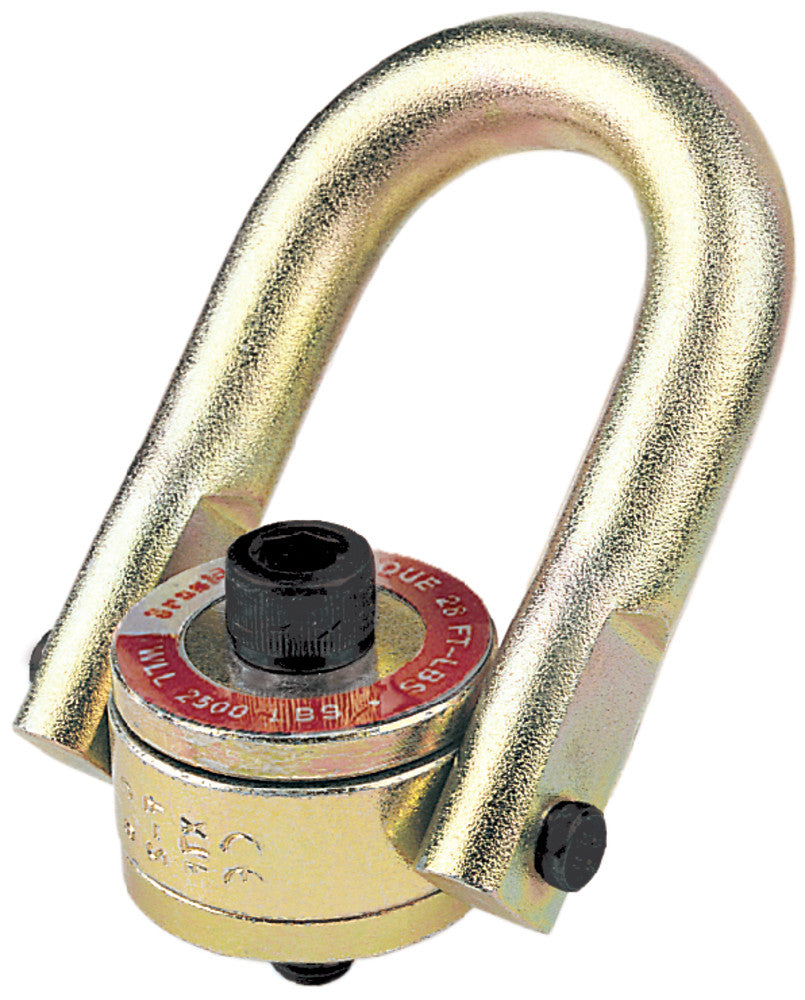

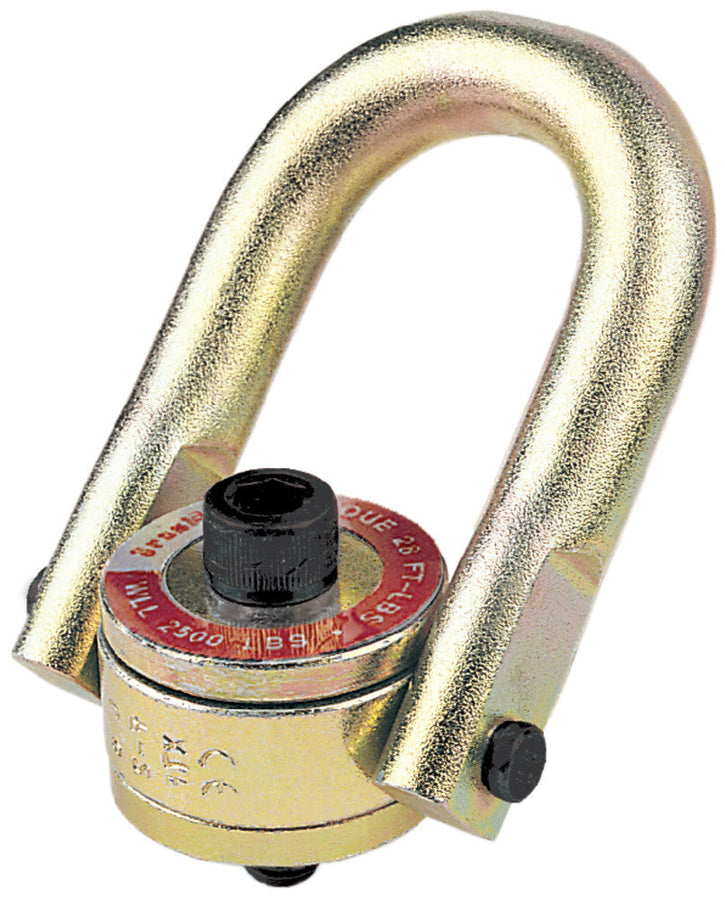

• Crosby HR-125 swivel hoist ring, stock number 1016920, with a 4,000 lb working load limit
• 5/8"-11 UNC bolt with a 2.00" (50.8 mm) thread length and a 60 ft-lb installation torque
• 360 degree swivel and 180 degree pivot, rated for full working load limit throughout the angular loading range
• Alloy steel, quenched and tempered, with a 0.69" bail diameter and 3.35" width
• 100% individually proof tested to 2-1/2 times the working load limit and fatigue rated to 20,000 cycles at 1-1/2 times WLL; meets ASME B30.26

Benefits:

• Full-WLL rating through the angular range means the ring does not have to be de-rated the moment the sling pulls off vertical
• The 360 degree swivel with 180 degree pivot lets the bail follow the load instead of side-loading the bolt
• Individual proof testing and magnetic particle inspection give every unit a documented pedigree for a rigging file
• ASME B30.26 compliance and the cast-in identification code satisfy inspection and traceability requirements
• A published 60 ft-lb installation torque takes the guesswork out of setting the ring correctly on the load

Availability: Usually Ships in 2-3 Business Days
